The Ceiling Conflict: Why Traditional Offices Can't Have Both Good Lighting and Good Acoustics

Open-plan offices face a fundamental design conflict: acoustic ceiling panels and track lighting compete for the same overhead space. Traditional office soundproofing requires maximum ceiling coverage, but luminaires block 15–25% of available area. The result: architects must choose between adequate illumination and acceptable noise levels — until now.

In a typical 200 m² open office, track lighting systems consume 15–25% of usable ceiling area. Traditional acoustic panels must route around these fixtures, leaving gaps that compromise sound absorption performance. Reverberation times (RT60) in untreated open offices commonly exceed 1.2 seconds — far above the 0.6–0.8 second target recommended by EN ISO 3382-2 for speech intelligibility.

The Integrated Solution: Acoustic Panels on Magnetic Track Rails

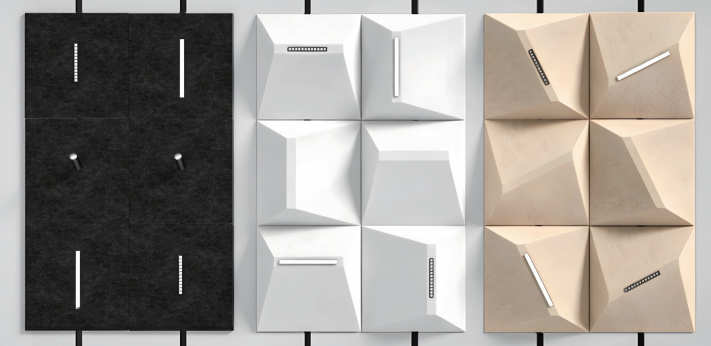

YNDLUX has developed a magnetic-mount acoustic panel system that attaches directly to 48V DC magnetic track rails. This office noise reduction solution eliminates the ceiling conflict entirely — lighting and sound absorption now share the same infrastructure, maximising coverage without compromise.

How It Works

• Magnetic mounting: PET felt acoustic panels clip onto the track rail using integrated magnets — the same mounting principle as magnetic track luminaires
• Modular layout: Panels slide into any position along the rail, interchangeable with light fixtures
• Tool-free installation: No additional suspension hardware, no ceiling penetrations beyond the track itself
• Reconfigurable: Rearrange the ratio of lights to acoustic panels as office layouts change

Material Specifications

Parameter	Specification
Absorber material	Recycled PET felt (≥60% post-consumer content)
NRC (Noise Reduction Coefficient)	0.85
Fire rating	Class B-s1,d0 (EN 13501-1)
Class A option	Fiber glass panels — Class A fire rated available on request
Panel dimensions	300 × 300 mm / 600 × 300 mm / 600 × 600 mm / 300 × 1200 mm
Colour options	30 standard colours (PET felt range)

Why This Matters: The Open Office Acoustics Problem

Poor office acoustics cost real money. Research from the Finnish Institute of Occupational Health shows that office noise reduces cognitive performance by 5–10% and increases stress hormone levels by up to 34%. The primary culprit is not volume — it's speech intelligibility from neighbouring workstations. A proper sound absorbing ceiling is the most effective intervention.

Effective acoustic ceiling solutions require maximum coverage. Industry guidelines (DIN 18041, BS 8233) recommend treating 60–80% of ceiling area in open offices. When track lighting blocks 20% of that area, achieving target coverage becomes geometrically difficult without expensive bespoke solutions. Traditional acoustic panels for office ceilings must route around fixtures, leaving performance gaps.

Coverage Comparison

Approach	Acoustic ceiling coverage	Installation complexity
Traditional: separate track + acoustic panels	55–65% (panels route around tracks)	Two trades, two systems
Integrated: acoustic panels on magnetic track	80–90% (panels fill between luminaires)	Single system, one installation
Suspended acoustic baffles	Variable (40–70%)	Additional suspension grid required

Design Flexibility: 30 Colours, Infinite Configurations

The PET felt panels are available in 30 standard colours (PET felt range) — from neutral greys and whites for corporate environments to bold accent colours for creative studios and co-working spaces. Panels can be mixed within a single track run to create visual rhythm or zone-coding.

Because panels are magnetically mounted, seasonal colour changes or brand refreshes require zero tools and zero downtime. A facilities manager can reconfigure an entire floor's acoustic-visual scheme in hours, not days.

Application Scenarios

Open-Plan Offices

Primary application. Track runs along desk rows provide both task lighting (adjustable magnetic spotlights) and overhead absorption (panels between fixtures). Typical ratio: 60% acoustic panels, 40% luminaires.

Meeting Rooms and Huddle Spaces

Glass-walled meeting rooms suffer from internal reverberation. Ceiling-mounted magnetic track with high-NRC panels (40 mm) brings RT60 below 0.5 seconds without sacrificing lighting quality.

Education and Libraries

Classrooms require both uniform illumination (≥500 lux on desks per EN 12464-1) and speech clarity (STI ≥ 0.6). Integrated track systems deliver both from a single ceiling infrastructure.

Hospitality: Restaurants and Hotel Lobbies

High ceilings with exposed services (industrial aesthetic) benefit from track-mounted acoustic panels that maintain the open-ceiling look while controlling noise. The design-forward colour range suits hospitality interiors.

Installation: One Trade, One Day

Traditional acoustic retrofit in a 500 m² office requires:

• Acoustic consultant survey (1–2 days)
• Suspension grid installation (2–3 days)
• Panel mounting around existing services (1–2 days)
• Total: 4–7 working days, 2–3 trades

Magnetic track acoustic system:

• Track installation (if not already present): 1 day
• Panel placement: magnetic snap-on, 0.5 days for 500 m²
• Total: 1–1.5 days, single electrician

Sustainability Credentials

• Material: Recycled PET felt (≥60% post-consumer content) — lightweight, durable, and acoustically efficient
• End of life: 100% recyclable back into PET felt production

Technical Integration with 48V DC Magnetic Track

The acoustic panels are designed specifically for 48V DC magnetic track profiles. Key integration points:

• Profile compatibility: Standard recessed and surface-mount 48V track profiles
• No electrical connection: Panels are passive — magnets only, no wiring
• Luminaire clearance: Panel height designed to sit flush with track-mounted spotlights
• Thermal safety: Recycled PET felt (≥60% post-consumer content) rated to 250°C; LED track lights operate at <45°C surface temperature
• Weight budget: Track systems rated for 3 kg/m; acoustic panels well within limits

Specifier's Checklist

When specifying magnetic track acoustic lighting systems, consider:

1. Target RT60: Define reverberation time goal (typically 0.6–0.8s for offices)
2. Coverage ratio: Calculate required panel-to-luminaire ratio based on room volume
3. Colour scheme: Coordinate with interior design — panels are a visible design element
4. Maintenance access: Magnetic mount allows easy removal for ceiling service access
5. Fire compliance: Verify local fire code accepts B-s1,d0 classification for ceiling-mounted elements

Conclusion

The traditional conflict between ceiling lighting and acoustic treatment is a design problem, not a physics problem. By integrating sound-absorbing panels into the magnetic track system itself, YNDLUX eliminates the need to choose. One infrastructure, two functions, zero compromise.

For acoustic simulation data, panel colour samples, or project-specific layout recommendations, contact our technical team.

The Problem with Traditional Linear Lighting Projects

Every commercial linear light fixture project faces the same bottleneck: custom lengths, complex wiring, and long lead times. A 200 m² office might need 15 different led linear light runs — each requiring individual power feeds, precise measurements, and on-site adjustments. The result: weeks of coordination between electricians, ceiling contractors, and lighting suppliers.

What if you could build any modular linear lighting layout from standard modules, connect them in seconds without tools, and power the entire run from a single feed point?

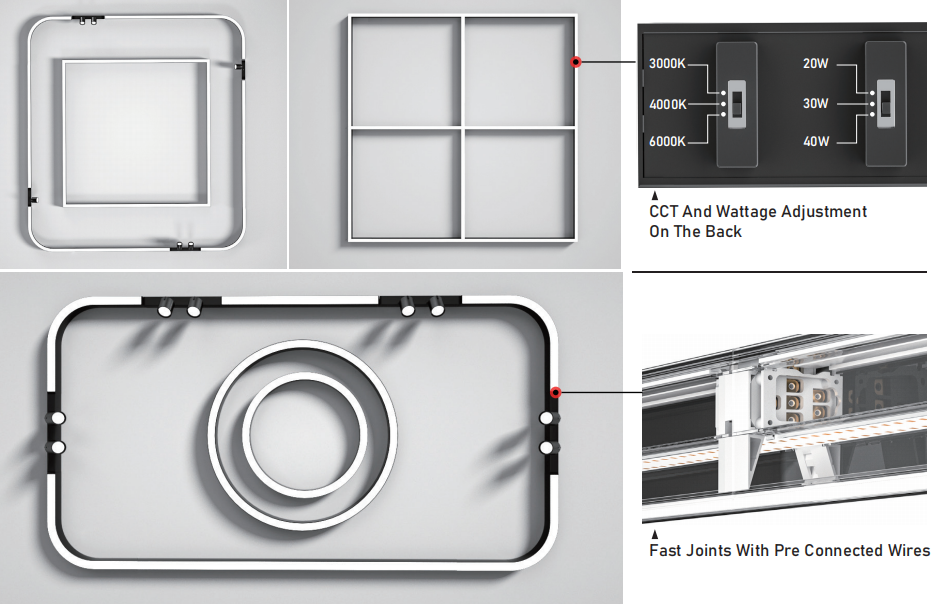

Introducing the 50 mm Quick-Connect Modular Linear Light

This slim linear light with a 50 mm profile uses a patented quick connect lighting system with integrated copper conductors in every joiner. Snap two modules together and the electrical connection is made instantly — no additional wiring between fixtures. Only the first module in each run needs a mains connection.

How Quick-Connect Works

• Built-in copper conductors: Every connector piece contains precision copper contact strips that align automatically when modules join
• Snap-fit mechanical coupling: Modules lock together with a firm click — no screws, no tools, no loose cables
• Single power feed: Wire power to the first module only; the entire run is energised through the integrated conductors
• Unlimited extension: Add modules to extend runs without additional electrical work

Visual Comfort: UGR<19 with Prismatic Diamond Diffuser

The prismatic diamond-cut diffuser delivers UGR<19 across all standard office geometries. This meets the requirements of EN 12464-1 for screen-based work (VDU tasks) without supplementary shielding or louvres.

Unlike flat opal diffusers that sacrifice efficiency for comfort, the diamond prismatic optic redirects light precisely where needed — maintaining high luminaire efficacy while eliminating direct glare for seated occupants.

Tunable White: DIP Switch CCT Selection

An integrated DIP switch on each module allows colour temperature selection without external controllers or DALI commissioning:

• Option A: 2700 K / 3000 K / 4000 K (warm to neutral range)
• Option B: 3000 K / 4000 K / 5700 K (neutral to cool daylight range)

Select the CCT during installation and change it any time by accessing the DIP switch — no rewiring, no reprogramming. Different zones in the same project can use different colour temperatures from the same SKU.

Module Options: Build Any Layout from Stock

Standard linkable led light modules available from stock:

Module Type	Description
Straight 1000 mm	1-metre linear module
Straight 1500 mm	1.5-metre linear module
Straight 2000 mm	2-metre linear module
L-connector (90°)	Right-angle corner piece
T-connector	Three-way junction
X-connector (Cross)	Four-way intersection
D800 Arc	800 mm diameter curved section

Why This Changes Commercial Lighting Projects

For Electrical Contractors

• One power point per run: Eliminate junction boxes and cable runs between fixtures
• No specialist skills: Any installer can assemble the system — snap, click, done
• Faster installation: A 12-metre continuous run installs in under 15 minutes

For Lighting Designers & Architects

• Design freedom: Combine straight, corner, T-junction, cross, and arc modules into any ceiling pattern
• No custom manufacturing: Complex geometric layouts assembled from standard stock modules
• Consistent light line: Seamless connection between modules — no dark gaps at joints

For Distributors & Wholesalers

• Stock-based fulfilment: Serve any project from 7 standard SKUs instead of custom orders
• Reduced lead times: Ship from warehouse instead of waiting for factory production
• Lower inventory risk: Modular components are universal — no project-specific dead stock

Technical Specifications

Parameter	Specification
Profile width	50 mm
UGR	<19 (EN 12464-1 compliant)
Diffuser	Prismatic diamond-cut
CCT options	2700K/3000K/4000K or 3000K/4000K/5700K (DIP switch selectable)
Connection	Quick-connect with integrated copper conductors
Module lengths	1000 mm / 1500 mm / 2000 mm
Connectors	L (90°), T, Cross (+), D800 Arc
Power feed	Single point per run (through-wired via connectors)

Application Scenarios

Open-Plan Offices

Long continuous runs above desk clusters. UGR<19 ensures screen comfort for all-day computer work. Tunable white allows different CCT zones — 4000 K for focus areas, 3000 K for breakout spaces.

Retail & Showrooms

Geometric ceiling patterns using L, T, and cross connectors create visual interest while providing uniform commercial linear lighting. Arc modules add curves that break the grid monotony.

Corridors & Circulation

Single-feed continuous runs spanning entire corridor lengths. No intermediate junction boxes means cleaner ceiling lines and faster installation.

Education & Healthcare

UGR<19 meets the strict visual comfort requirements for classrooms and examination rooms. DIP switch CCT allows seasonal adjustment without rewiring.

From Complex Project to Stock Delivery

Traditional approach: measure → specify custom lengths → wait 4–6 weeks for production → install with multiple power feeds → commission.

Modular approach: design layout → select modules from stock → deliver in days → snap together on site → connect single power feed → done.

The modular linear lighting system transforms bespoke lighting projects into standard product deliveries. No minimum order quantities for custom lengths. No production delays. No wiring complexity. Just modules, connectors, and a single power point.
